Note: HRES and Ensemble Control Forecast (ex-HRES) are scientifically, structurally and computationally identical.  With effect from Cy49r1, Ensemble Control Forecast (ex-HRES) output is equivalent to HRES output where shown in the diagrams.   At the time of the diagrams, HRES had resolution of 9km and ensemble members had a resolution of 18km.

Structure of the lower atmosphere and boundary layer

Modelling the structure of the lowest, near surface, layers is very important for analysis and forecasting, especially for cold temperatures at 2m.  For this reason there are many model levels in the boundary layer.   Capturing the structure of the temperature and moisture can be difficult and often imprecise.  The structure is particularly difficult to define where there are low level inversions or complex orography.  Modelling wind shear and mixing processes also has an impact.

Forecasting the development and persistence of cloud is very important.  Cloud coverage affects both the albedo and radiative balance between surface and boundary layer air.

Cloud containing super-cooled liquid water is often observed by aircraft and by remote sensing.  But the processes and consequent effects associated with super-cooled liquid water in the cloud are difficult to model precisely because:

  • super-cooled liquid water is important for radiation considerations.
  • super-cooled liquid water can increase cloud lifetime (liquid drops can remain suspended while ice crystals grow and fall out).
  • there is a fine balance between turbulent production of water droplets, nucleation of ice, deposition growth and fallout.
  • there are uncertainties in turbulent mixing, ice microphysics, vertical resolution.

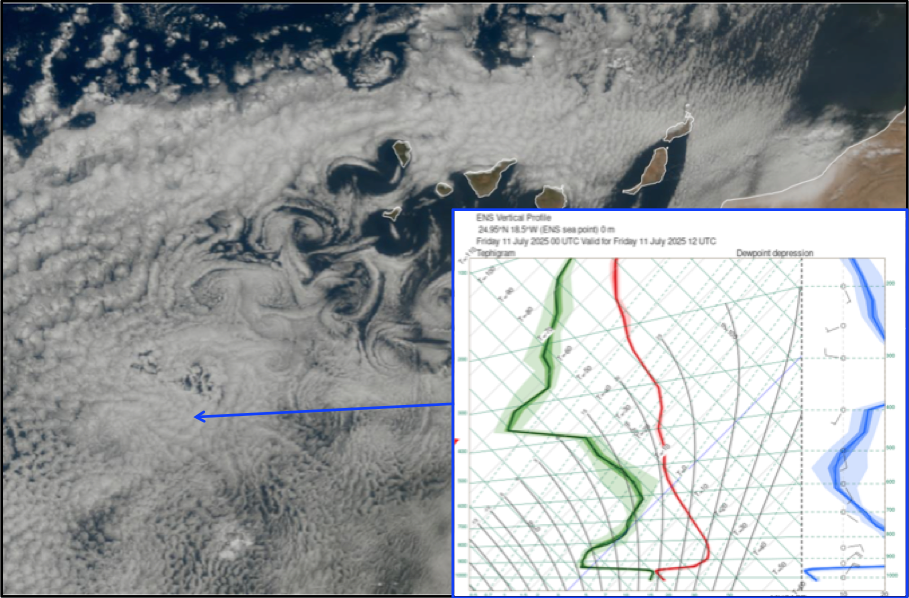

The structure of the boundary layer is crucial.  This is particularly so where there is a well-marked inversion, with or without a sharp change in humidity.  Users should note:

  • stratocumulus tends to be under-predicted over land in anti-cyclones or may dissipate too quickly.

  • incorrect definition of the boundary layer in the physics schemes can mean incorrect identification, formation or dispersal of low cloud.
  • observed, analysed and forecast temperatures can be very different to one another in hilly or mountainous regions.

Problems in handling low cloud can have a significant impact on the temperature and moisture structure of the boundary layer and impact 2 m temperatures.  A revised warm-phase microphysics and revised boundary layer clouds and shallow convection were introduced in 2018.

Defining anticyclonic inversions is often a problem, particularly in winter with colder or sub-zero temperatures in the lower boundary layer.  Low level cloud cover tends to be shallower in the forecast and break too easily.  Greater incoming radiation can raise the near surface temperatures too much and/or too quickly.  Sub-zero temperatures can be very low to rise.

Users should assess how well the model has analysed the structure of the inversion and take into account the extent and persistence of the cloud area under the inversion during the past few days.


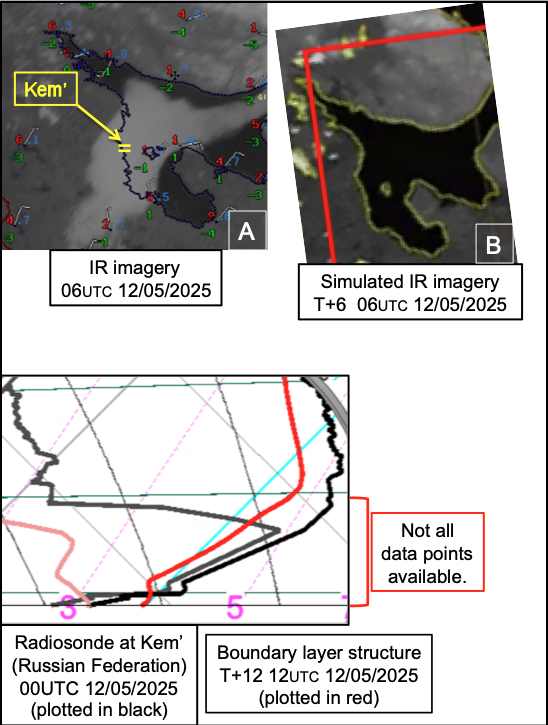

Fig9.1-1: A comparison of observed (orange) and model analysed/forecast (green) temperature and dewpoint structures.  Errors are due to assimilation issues coupled with the difficulties handling the cloud physics.  In this case the surface cool and moist layer was analysed to be slightly deeper than in reality.   This retarded fog clearance and therefore delayed heating and overturning of the boundary layer through the morning.  So by 12UTC the forecast inversion was too low compared with reality and it had also not captured the stratocumulus from the convective overturning within the boundary layer.  Consequently the true radiation balance around midday was not captured.




Fig9.1-2: Examples of the difficulty of describing the boundary layer temperature and moisture structure.  Dew-point is used here as a measure of moisture.  Forecast values shown in red; observed values shown in black.  DT:00UTC 19 Jan 2025; T+12 VT12UTC 19 Jan 2025.  There was a large anticyclone over Europe at this time with extensive low cloud but with some breaks mainly around the edges.  In this case the Ensemble control (Ex-HRES) handled the boundary layer evolution rather poorly.

  • At Budapest the boundary layer was observed to be saturated with thick low cloud but the forecast had thinner cloud with a higher base.  Forecast brighter conditions allowed the near surface temperature to rise a little.  The error in 2m temperature was about 2°C (Temperatures: Observed -3°C, forecast -1°C).
  • At Wien the boundary layer was observed to be mostly saturated with low cloud but the forecast had broken the cloud.  Forecast morning insolation allowed the near surface temperature to rise a rather more.  The error in 2m temperature was about 4°C (Temperatures: Observed -3°C, forecast 1°C).
  • At Sofia was observed to have fog in the morning and to remain with low cloud all day despite the thin layer of low cloud shown on the vertical profile.  The forecast had readily dispersed the cloud. and unhindered morning insolation allowed the near surface temperature to rise a great deal.  The error in 2m temperature was about 12°C (Temperatures: Observed -4°C, forecast 8°C).

Consequences from an error in the forecast location of a front

Errors in the forecast location of a front lead to large errors in the predicted airmass and surface parameters at a given location.  When a front is misplaced, dissimilar air masses either side of the front mean the structure of the atmosphere can be very different from that actually experienced.   The differences between forecast and observations can be over the whole depth of the atmosphere when a front is misplaced.  Large 2-metre temperature errors can occur.

The user should consider carefully the advance of frontal zones and use ensemble output to assess the uncertainty in timing.  Model representation of temperature and moisture structure in the lower atmosphere can be considerably different from actual observed values if a front is faster or slower than predicted.

An example - passage of cold front in the Balkans late June 2023

The cold front was associated with very thick cloud cover and patchy rain.  2m temperatures were low for this time of year under the frontal cloud, and in the post-frontal cold air temperatures were only between 13°C and 20°C.  The T+72 forecast for Bucaresti showed no cloud, temperature 29°C, and SW'ly low-level winds.  But observations showed thick cloud layers, temperature 19°C, and NE'ly low-level winds.  However, the ensemble members showed uncertainty in the position of the cold front and the spread in temperature was very large in the whole boundary layer.


Fig9.1-3: Errors in 2m temperature over the Balkans T+72 DT12UTC 25 June, VT 12UTC 28 June 2023.  The cold front advanced further than predicted with extensive cloud depressing temperatures ahead of the front and allowing an inflow of colder air to the rear.  Colours show where forecast temperatures are too warm (red and purple), too cold (blue).

Fig9.1-4: Vertical profile showing differences structure of the airmass at Bucaresti.  The T+72 forecast for Bucaresti (red) showed no cloud, temperature 29°C, and Sw'ly low-level winds.  The radio sonde data showed thick cloud layers, temperature 19°C, and NE'ly low level winds.



(FUG Associated with Cy49r1)
